The best of MB Quart
MB Quart's Premium Series car speakers provide the best possible sound from an audio industry mainstay. The MB Quart PS1-316 3-way component system features two 6-1/2" woofers, two 4" midrange drivers, two 1" tweeters, and two external crossovers. The paper/mica hybrid woofer cone and midrange driver use a unique design and responsive construction for a natural-sounding midrange and impactful bass response. The 1" magnesium dome tweeter handles the highs with precision and power, while MB Quart's WideSphere™ technology expands the tweeter's dispersion pattern for a wider, more lively soundstage.
Grilles included
MB Quart makes wiring easy with stainless-steel push-and-insert connectors, and grilles are included if you're doing a custom installation.

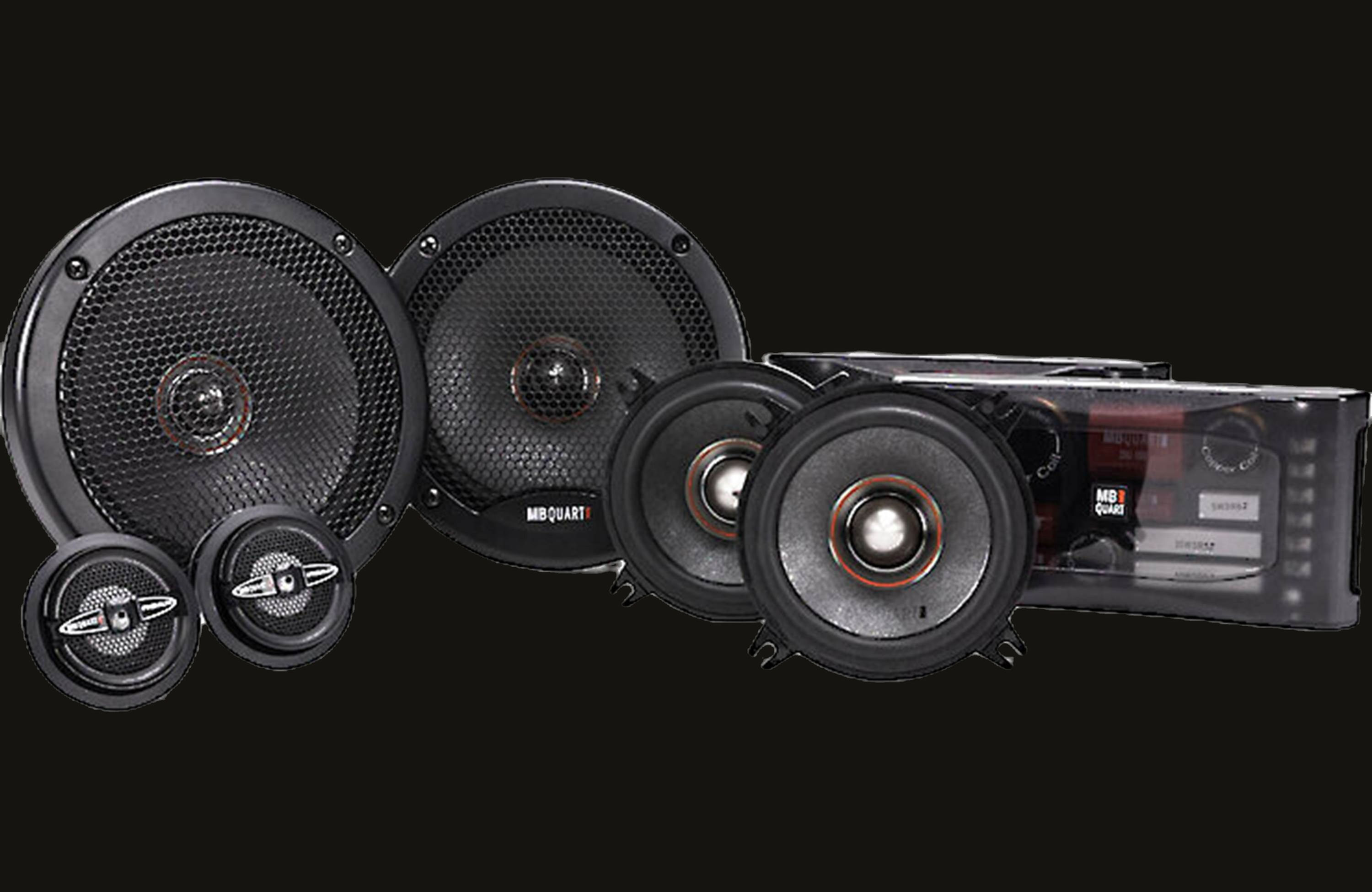

MB Quart PS1-316 Premium Series 6-1/2" 3-way component speaker system
- component speaker system includes 2 woofers, 2 midrange drivers, 2 tweeters, and 2 crossovers
- 6-1/2" paper/mica woofer
- 4" paper/mica midrange driver
- 1" magnesium dome tweeter
- external 3-way crossover network
- special-design frame virtually eliminates resonance
- handles up to 100 watts RMS (200 watts peak power)
- frequency range: 20-22,000 Hz
- sensitivity: 85.5 dB
- top-mount depth: 2.567" (woofer); 2.118" (midrange)
- crossover dimensions: 3.57"W x 7.3"L x 1.4"H
- impedance: 4 ohms
- grilles included
- warranty: 1 year
MB Quart PS1-316 owner's manual
- 2 Woofers
- 2 Woofer grilles
- 2 Midrange
- 2 Tweeters (each has 9" wire attached)
- 2 Flush-mount cups
- 2 Metal flush-mount clamps
- 2 Surface-mount bases
- 2 Crossovers
- Sixteen 1-1/8" Screws
- Two M4x8mm Machine screws
- Four 1/2" Screws
- 16 Large speed clips
- 4 Small speed clips
- 2 MB Quart crossover badges
- 2 Adhesive backed hook and loop crossover mounts
- Installation guide
- Templates
- 2 MB Quart stickers
